Ruviplan Walkway 1.5mm
Ruviplan FG PLUS

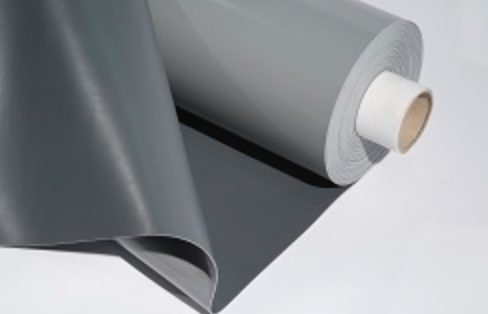

Ruviplan Walkway
Dimensions
Thickness 1.5mm Roll width 1.5m Roll length 20m. Roll area 30m2 Weight 1.8k per m2. Roll weight circa 49kg
Colour
Ruviplan Walkway as standard comes dark grey colour. Closest RAL to dark grey is RAL 7012 and slight colours variation may occur between batches.
Light grey is also available on special order.
Note light grey is not a stock item so please allow longer lead times for delivery. Please email info@ruvitex.co.uk to enquire about light grey.
Material
Please login for pricing
Resistance to wind forces.
Ruviplan Walkway has exceptional tensile and tear strength and is designed to resist the forces of wind and weather during many years of service. During the manufacturing process, the PVC and polyester reinforcement are fused together to produce one homoge-
nous sheet.
Low temperature flexibility
Ruviplan Walkway is manufactured to withstand the low temperatures during winter. The membrane remains flexible during installation and when in use without fracturing. Ruviplan FG PLUS 2 remains flexible at –25° C.
Water vapour permeability
Ruviplan Walkway membranes are vapour permeable. When used in a mechanically attached system, the membrane provides an ideal solution for roof constructions with limited risks of interstitial condensation.
Puncture Resistance
Ruviplan Walkway membranes are resistant, without damage, to the limited foot traffic and light concentrated loads associated with the installation and maintenance work. On areas of frequent foot traffic i.e. roof access points and routes to roof-top plant etc. a suitable protection layer should be used. Ruviplan walkway membrane, paving slabs on supports or other preparatory walkway should be used.
Solar reflection
Ruviplan Walkway light grey membrane can help to reduce the surface temperature during warm weather and heat gain within the interior of the building.
Life Expectancy
Ruviplan Walkway has been subjected to accelerated weather tests that have indicated a minimum life expectancy of over 30 years. PVC single ply roofing membranes were first used in Europe in the 1960’s and many continue to provide service after 40 years.
Application
Ruviplan Walkway membranes are suitable for use with foil faced ridged foam insulation and mineral wool insulation boards. On cold roof and refurbishment a suitable isolation layer should be used under the Ruviplan FG PLUS membrane.
Installation
Ruviplan Walkway membranes must be installed by applicators/contractors who have the necessary experience and equipment and have undergone the required training. Inspection of overlap, seams and general installation must be carried out during and on completion of each installation.
T E N S I L E S T R E N G T H.
Ruviplan Walkway membranes have exceptional tensile strength and are designed to be resistant to wind uplift forces as well as thermal and structural movement.
T E A R S T R E N G T H
The tear strength of Ruviplan FG PLUS is designed to complement the type and capacity of the mechanical fastening combinations.
C O L D R E S I S T A N C E
Ruviplan Walkway contains stabilisers which ensure that the membrane is resistant to low and high temperatures.
F I R E R E S I S T A N C E
Ruviplan Walkway has been tested by the BRE in accordance with BS EN13501-5:2005+A1:2009 using test method CEN/TS 1187:2012 Test 4 and has been classified Broof(t4)
